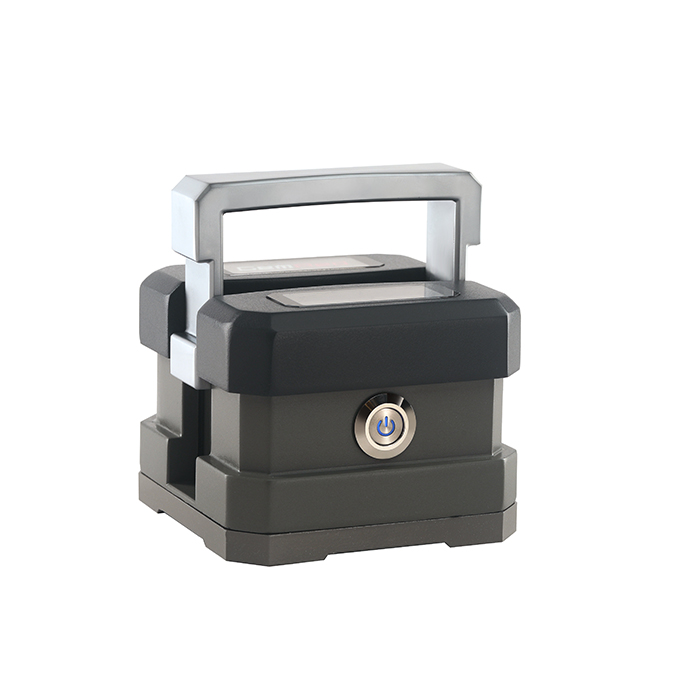

GemRed High-Precision Smart Leveling Instrument ML200
Model: SY210 High-Precision Instrument Level Tools
The static repeatability is measured under standard experimental conditions, all technical parameters are subject to the official technical manual.
Key Features:

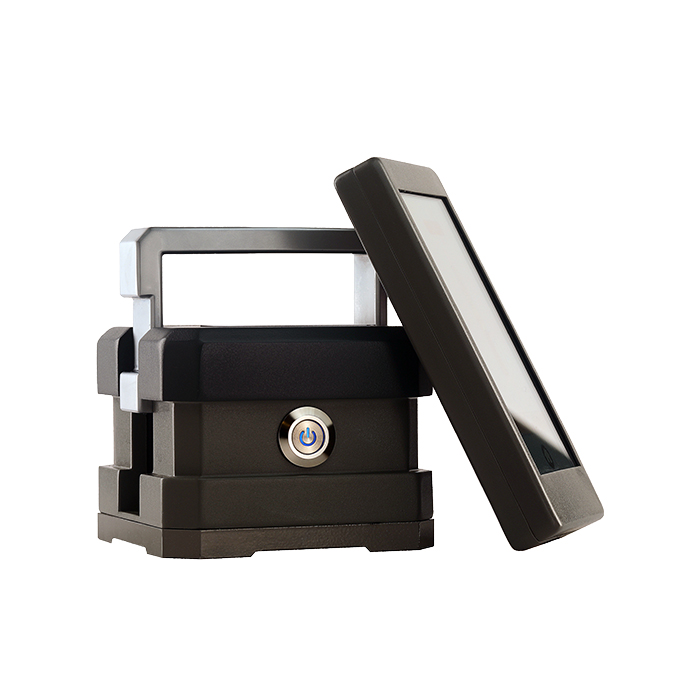

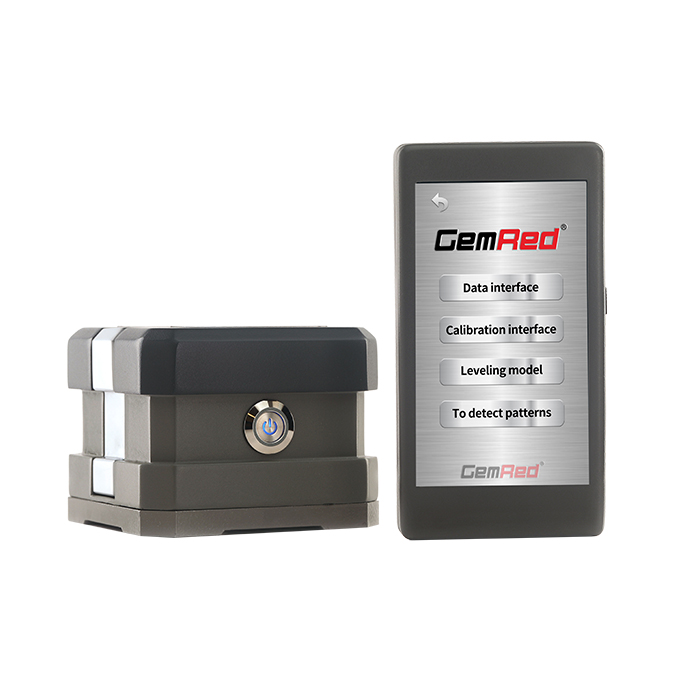

- Both Intuitive analog bubble and digital display on a handheld terminal.
- Smart algorithm ensures high accuracy and high reliability of GemRed Leveling.
- With the wireless connection between GemRed Leveling and its handhold terminal, GemRed Leveling applies in all spaces.
- Multi-networking function help to quickly complete large-scale mechanical equipment leveling.
- Fast machine leveling, saves more than 70% of the time compared with the traditional levels.
- Easily Self-checking machine levels, maintaining the machine’s durability.
- Applicable fields: Aerospace, Engineering automobile, Telecommunication, Machine tools, Medical, National Defense, Mining, Electronics, Sports, Transportation, etc.
- Applicable equipment: CNC machining center – vertical, horizontal, and gantry, CNC lathe, CNC grinder, Traditional manual machine, etc.
Specifications
| Place of Origin | Guangxi, China |
| Manufacturer | GemRed |
| Measuring Range: | ±0.5mm/m |
| Dimension: | 100mm*100mm*78mm |
| Resolution: | 0.01mm/m |
| Accuracy: | ±0.02 mm/m |
| Repeatability: | ±0.02 mm/m |
| Working Temperature: | 10℃(32℉)~40℃(104℉) |
| Working Humidity: | ≤85% |
| Transportation or storage temperature: | -20℃(-4℉)~70℃(158℉) |

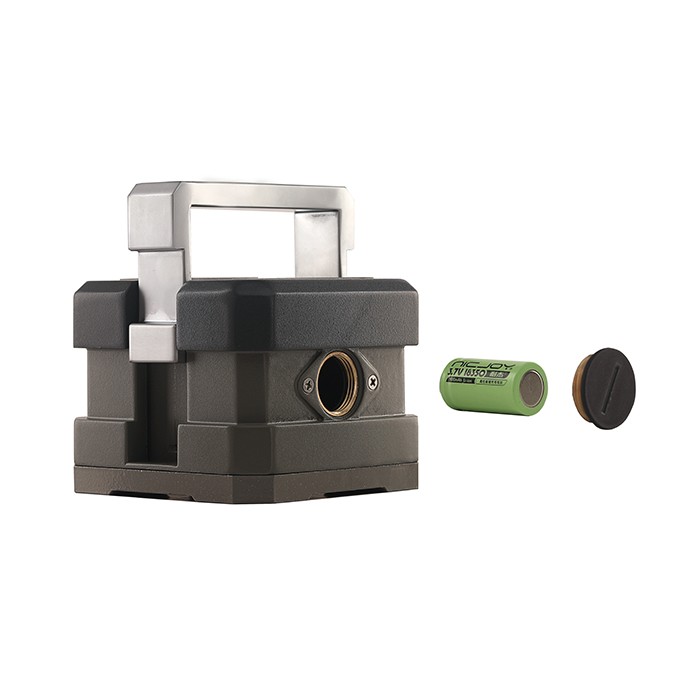

| Battery Type: | DC3.7V (DC3.3V ~5.0V) |
| Battery duration time | >15h |
